Medium Duty Side Entry Agitators
Types: JRWM
Medium duty side entry agitators and mixers are suitable for applications like vegetable oil storage, bio digesters, blending (petro)chemical.
Medium duty side entry agitators and mixers have the following characteristics:
- Mixing applications where higher forces are required
- Larger tank volumes
- Fluids with higher viscosity up to approx. 5000 cP
- Tanks with higher pressure (max. 4 bar g)
- Integrated manual leak stop if required
| Medium Duty Side Entry | |
|---|---|
| Motor power | 3 kW - 22 kW |
| Materials | Stainless Steel 304, 316 L, Carbon Steel, Duplex (Super), Hastelloy C4 or C2000, Titanium Grade 2 or 7 |
| Coatings | C3, C4, C5 of C5M |
| Surface wetted parts | Ground until Ra < 0,4 µm, handpolished till <0,2 μm or electropolished, rubber lined, PTFE or HALAR |
| Explosion proof (ATEX) | Ex zone 0, 1 or 2 for gas, 21 or 22 for dust or Non-Ex version |
| Accessories | V-belt or gear driven (all brands), all kinds of sealing systems, sterile versions, adapted flanges to vessel |

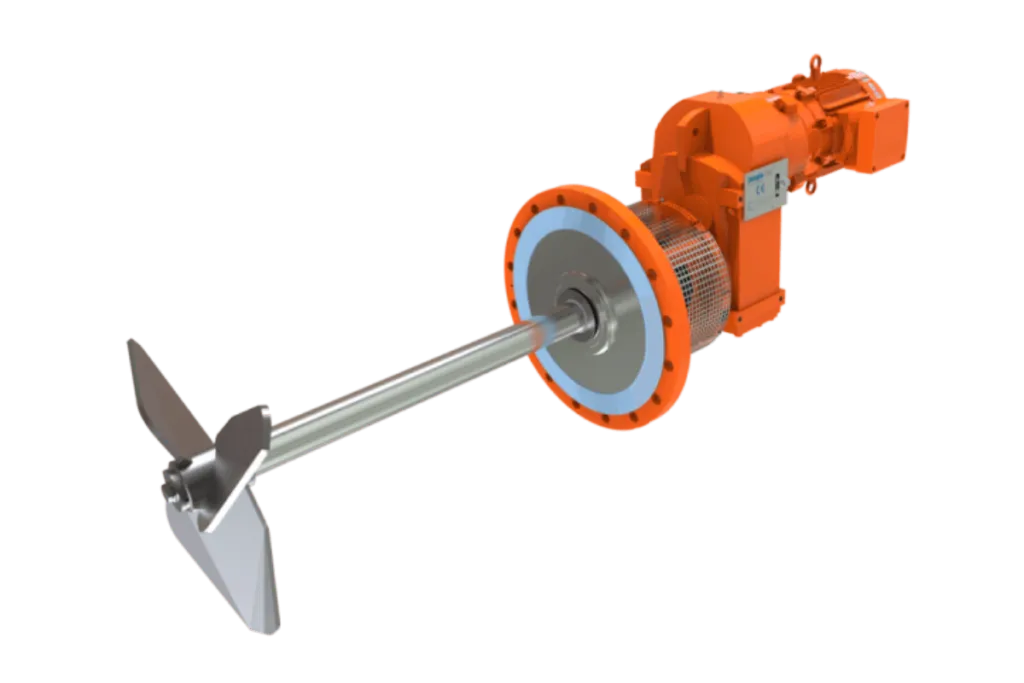

JRWM mixers
Jongia’s Sydmikser type JRWM is a very compact, rigid and reliable side entry mixer, typically applicable for liquid storage and BIOGAS applications. For example the JRWM is applied in Biogas tanks and waste water systems.
All JRWM Sydmiksers are equipped with a “shut-off” device. This enables the mixer to be shut-off from the tank content by means of a retractable shaft cone. When the shut-off is activated, easy inspection and exchange of mechanical seal and drive is enabled, without the need for an empty tank. Almost all mechanical seal constructions, even stuffing box systems can be applied (depending on the duty). The shaft is coupled to the drive by means of a hollow shaft gearbox. The mixer is able to be equipped suitable for Atex requirements.
Processes:
mixing, blending, keeping homogeneous, buffering, dispersion, fermentation (digesters), suspending, heat transfer
Applications Medium Duty Side Entry Agitator – JRWM
Frequently Asked Questions
What applications are suitable for medium duty side entry agitators?
Medium duty side entry agitators are ideal for various applications such as vegetable oil storage, biogas digesters, and the blending of petrochemicals. Their robust design allows them to handle challenging mixtures effectively in these environments.
What types of fluids can these agitators handle?
These agitators are capable of mixing fluids with higher viscosities, up to approximately 5000 cP, making them versatile for different processing needs across various industries.
Can these agitators operate under high pressure?
Yes, medium duty side entry agitators can operate in tanks with higher pressures, specifically up to a maximum of 4 bar g, ensuring reliable performance in demanding conditions.
What materials are used in the construction of these agitators?
The agitators are constructed using materials like Stainless Steel 304, 316 L, Carbon Steel, Duplex, Hastelloy C4 or C2000, and Titanium, providing durability and compatibility with various fluids.
Are the agitators customizable for specific applications?
Yes, these agitators can be customized with various accessories such as sealing systems, gear drives, and sterile versions, allowing for tailored solutions to meet specific operational requirements.
